Product Details
Place of Origin: Shandong, China
Brand Name: None
Certification: CE/ISO9001: 2000/EPA/Euro 5/SGS
Model Number: FW35-100
Payment & Shipping Terms
Packaging Details: Nude / Wooden Box
Delivery Time: 3-15 week days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P, Paypal
Supply Ability: 5000 Units/Year
Transmission: |
Hydraulic Transmission |
Type: |
Crawler Excavator |
Drive Type: |
Electric Drive |
Bucket Capacity: |
0.1-0.5m³ |
After-sales Service: |
Spare Parts |
Warranty: |
12 Months |
Transport Package: |
Nude / Wooden Box |
Specification: |
3.5-10T |
Customized: |
Support OEM And ODM |
Color: |
Blue, Yellow, Red, Orange, Green, White |
Working Hour: |
2000h |
Transmission: |
Hydraulic Transmission |
Type: |
Crawler Excavator |
Drive Type: |
Electric Drive |
Bucket Capacity: |
0.1-0.5m³ |
After-sales Service: |
Spare Parts |
Warranty: |
12 Months |
Transport Package: |
Nude / Wooden Box |
Specification: |
3.5-10T |
Customized: |
Support OEM And ODM |
Color: |
Blue, Yellow, Red, Orange, Green, White |
Working Hour: |
2000h |

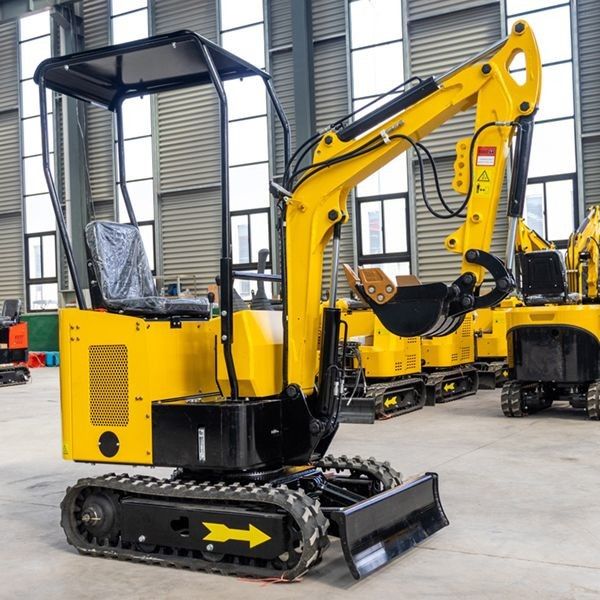

Micro Small Mini Escavator Mini Hydraulic Crawler Excavator Bagger Crawler
A mini excavator is very suitable for operation in small space construction sites and The load-sensing system realizes the perfect match between the engine and the main pump, provides accurate flow, improves work efficiency, and saves fuel and time.
3.5ton mini excavator high-end configuration, using hydraulic components of internationally famous brands to ensure the high reliability of the hydraulic system. and widely used indoor demolition, orchard planting, municipal engineering, greenhouses, wasteland reclamation, nursery ditching and fertilization, pipelines, basement renovation, underground operations, etc.
The standard crushing pipeline can be equipped with various accessories such as a crushing hammer, ripper, wood grabber, auger, etc., one machine is multi-purpose; iron crawler and rubber crawler can be interchanged at any time to adapt to various working conditions In construction, the deflection arm is used, which can be deflected to easily dig the foot of the wall.
They are all hot selling exported to the USA, European, South Africa, Southeast Asia, and other overseas regions.
Specifications:
| Specifications | |
| Full Vehicle Weight | 4.2T |
| Rated Power | 27.0/2200kW/rpm |
| Swing Speed | 12rpm |
| Ground specific voltage | 36kPa |
| Stick digging force | 21.6kN |
| Overall Length | 5385mm |
| Overall Height(boom tip) | 1890mm |
| Track Width | 350mm |
| Minimum Ground Clearance | 350mm |
| Track Grounding Length | 1710mm |
| Max.Digging Height | 5030mm |
| Max.Digging Depth | 3390mm |
| Min. Rotation Radius | 2406mm |
| Bucket Capacity | 0.17m³ |
| Walking Speed(Fast/Low) | 2.7/4.4km/h |
| Climbing Ability | 58%/30° |
| Bucket Digging Force | 23.7kN |
| Engine | Yanmar |
| Overall Width | 1750mm |
| Overall height(top of cab) | 2455mm |
| Wheel Base | 1400mm |
| Tail Turning Radius | 1561mm |
| Track Width | 2190mm |
| Max.Dumping Height | 3365mm |
| Max.Digging Distance | 5523mm |
Applications:
The main uses of the excavator: in road construction projects to excavate trenches, in construction projects to excavate the foundation, in water conservancy projects to excavate ditches, canals, and dredging rivers, in quarries, open-pit mining, and other projects for the stripping and excavation of ore, etc.; in addition to gravel, coal and other loose materials can be loaded.
Operation: After replacing the working device, it can also be used for lifting, pouring, installation, piling, ramming, and pile pulling.
Company Brief Introduction:
Mini Excavator, Full Energy, You will become a Big Winner!
Our main hot products include Excavators, Mini Excavators, Electric Excavators, Electric Forklifts, Road Rollers, scissors elevators, forklifts, and electric forklifts together with other machinery fields. Through these products, our Mini Excavators sell pretty hotly! Like 0.8T, 1.0T, 1.2T, 1.6T, 1.7T, 1.8T, 2.0T, 3.0T, 4T, 5T, 6T, 10T, 20T, 30T Excavators really win customers’ good likes!
And Also Scissor elevator, like 6 meters, 10 meters, 12 meters really hot as well.
All Products have obtained ISO9001, CE, SGS, EPA and TUV Certificated.
FAQ
Q1: Are you an original manufacturer?
We are a professional manufacturer, we have our own R&D team and sales team, and we provide a one-stop service.
Q2: What about the warranty time?
1 year or 2000 hours. We shoulder all costs during the warranty period, including the freight. And we also provide after-sales service support and agricultural technical support
Q3: What engine you can offer?
Optional Yanmar, Kubota, Brrigs&Sttraton engine,
Optional US EPA & Euro stage V engine
Q4: How can we ensure quality?
We have a quality control system and also double check supervise team,
The final inspection is always carried out before the shipment
Q5: What is your production time or delivery time?
Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 30-45 days, It depends on the order quantity.
Q6: What is your payment term?
Normally we can work on T/T and support 30% payment in advance and the other balance 70% can be paid against COPY B/L.
