Product Details
Place of Origin: Shandong,China
Brand Name: None
Certification: CE/ISO9001:2000/SGS/Euro 5
Model Number: FW08
Payment & Shipping Terms
Minimum Order Quantity: 1 UNIT
Packaging Details: Nude / Wooden Box
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 Units/Year
Drive Type: |
International Combustion Drive |
Bucket Capacity: |
0.1~0.5m³ |
Size: |
Small-Scale |
Certification: |
CE, ISO9001: 2000, EPA, SGS/Euro 5 |
Condition: |
New |
Customized: |
Support OEM And ODM |
MOQ: |
1PCS |
Color: |
Blue, Yellow, Red, Orange,Green,White |
Working Hour: |
2000h |
Transport Package: |
Nude / Wooden Box |
Specification: |
800 KG |
Trademark: |
Fullwin Machinery |
HS Code: |
84295212 |
Production Capacity: |
5000 Pices |
Drive Type: |
International Combustion Drive |
Bucket Capacity: |
0.1~0.5m³ |
Size: |
Small-Scale |
Certification: |
CE, ISO9001: 2000, EPA, SGS/Euro 5 |
Condition: |
New |
Customized: |
Support OEM And ODM |
MOQ: |
1PCS |
Color: |
Blue, Yellow, Red, Orange,Green,White |
Working Hour: |
2000h |
Transport Package: |
Nude / Wooden Box |
Specification: |
800 KG |
Trademark: |
Fullwin Machinery |
HS Code: |
84295212 |
Production Capacity: |
5000 Pices |

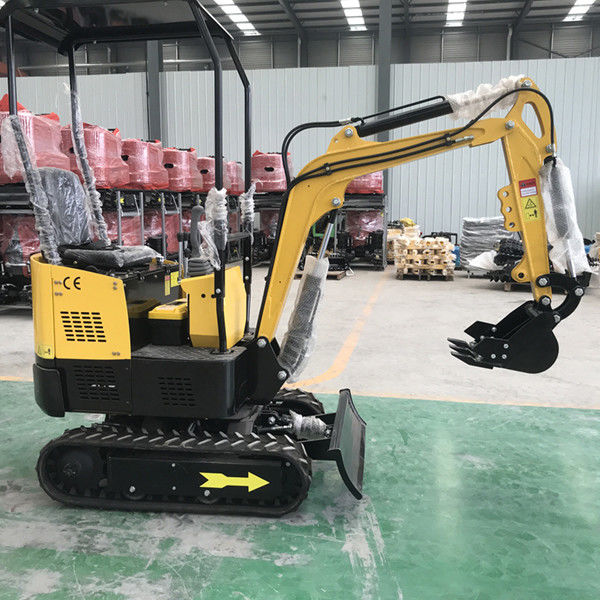

Mini Digger Excavator CE China Wholesale Compact Mini Excavators
0.8t excavator is a heavy-duty construction machine used for various applications such as digging, landscaping, mining, and demolition. It operates on a hydraulic system with an excavator arm or boom that is fitted with a bucket and a cab from where the operator controls the machine.
Our excavator is designed to cater to all your construction requirements with maximum efficiency and productivity. With a high horsepower engine and efficient hydraulic system, it is capable of digging deep and wide trenches, excavating large volumes of soil, and moving heavy loads with ease.
Our excavator is equipped with advanced features such as a modern joystick control system, an adjustable seat, a high-resolution monitor, and a climate-controlled cab that provides the operator with exceptional comfort and control. This ensures that our customers can use our excavator for longer hours without experiencing any fatigue, thereby increasing their productivity.
Our excavator has a compact and robust structure that is designed for stability, enabling it to operate on difficult terrains and handle heavy loads with ease. It has an advanced cooling system that prevents the machine from overheating during long hours of operation, thereby prolonging its lifespan.
Preformance Parameter FW08A | |
Rated Power | 7kw-7.5kw |
Bucket Capacity | 0.025m³ |
Bucket Width | 300mm |
Engine Model | Koop192f |
Optional Engine | Briggs&Stratton |
Opeating Weight | 800kg |
Pump Form | Single Gear Pump |
Set Working Pressure | 14Mpa |
Swing Speed | 12rpm |
Travel Speed | 2.2Km/h |
Gradeability | 30° |
Ground Pressure | 19Kpa |
Max. Digging Force | 7.5Kn |
Dimensions | |
Total Width | 720-780mm |
Total Height | 1300mm |
Total Length | 2430mm |
Min.Ground Clearance | 80mm |
Track Ground Length | 1140mm |
Track Width | 150mm |
Working Range | |
Max.Digging Distance | 2450mm |
Max.Digging Depth | 1200mm |
Max.Digging Height | 2350mm |
Max.Dumping Height | 1600mm |
Min.Swing Radius | 1100mm |
Max.upgrade Height of Bulldozer Blade | 120mm |
Max.Digging Depth of Bulldozer Blade | 200mm |
