Home > products > 1.5 Ton Mini Excavator > Euro V Engine Powered 1.5 T Mini Digger Small Excavation Equipment

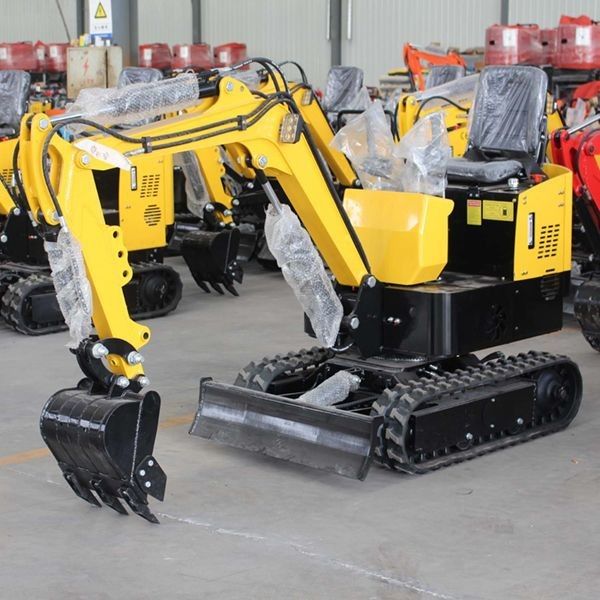

Euro V Engine Powered 1.5 T Mini Digger Small Excavation Equipment

Product Details

Place of Origin: Shandong, China

Brand Name: None

Certification: CE/ISO9001: 2000/EPA/Euro 5/SGS

Model Number: FW15

Payment & Shipping Terms

Packaging Details: Nude / Wooden Box

Delivery Time: 3-15 week days

Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P, Paypal

Supply Ability: 5000 Units/Year

Get Best Price
High Light:

Euro V Engine 1.5 T Digger

,

Euro V Engine Small Excavation Equipment

,

1.5t Mini machinery digger

Drive Type:
Internal Combustion Drive
Type:
Crawler Excavator
Transmission:
Hydraulic Transmission
Customized:
Support OEM And ODM
After-sales Service:
Spare Parts
Warranty:
12 Months
Bucket Capacity:
0.1-0.5m³
Transport Package:
Nude / Wooden Box
Specification:
1500kg
Color:
Blue, Yellow, Red, Orange, Green, White
Working Hour:
2000h
Drive Type:
Internal Combustion Drive
Type:
Crawler Excavator
Transmission:
Hydraulic Transmission
Customized:
Support OEM And ODM
After-sales Service:
Spare Parts
Warranty:
12 Months
Bucket Capacity:
0.1-0.5m³
Transport Package:
Nude / Wooden Box
Specification:
1500kg
Color:
Blue, Yellow, Red, Orange, Green, White
Working Hour:
2000h
Euro V Engine Powered 1.5 T Mini Digger Small Excavation Equipment

1.5t Mini Excavator Machinery Micro Digger Excavator for Sale



Company Brief Introduction:



Mini Excavator, Full Energy, You will become a Big Winner!

Our main hot products include Excavators, Mini Excavators, Electric Excavators, Electric Forklifts, Road Rollers, scissors elevators, forklifts, and electric forklifts together with other machinery fields. Through these products, our Mini Excavators sell pretty hotly! Like 0.8T, 1.0T, 1.2T, 1.6T, 1.7T, 1.8T, 2.0T, 3.0T, 4T, 5T, 6T, 10T, 20T, 30T Excavators really win customers’ good likes!
And Also Scissor elevator, like 6 meters, 10 meters, 12 meters really hot as well.
All Products have obtained ISO9001, CE, SGS, EPA, and TUV Certificated.



Euro V Engine Powered 1.5 T Mini Digger Small Excavation Equipment 0



Specifications:

Specifications
Weight 1500kg
Bucket Width 0.025cbm/120kg
Engine 380mm
Bore Stroke Koop(292F)
Rated Power Two cylinders, water cool
Displacement 14kw/3000r/min
Travel Speed 0.794L
Size 2550*940*1380MM
Wheelbase 770MM
Total Length Of Track 1090MM
Platform Ground Clearance 380MM
Platform Back-Turning Radius 733MM
Chassis Width 940MM
Track Width 180MM
Chassis Ground Clearance 380MM
Track Height 320MM
Max. digging depth 1650mm
Max. vertical digging depth 1375mm
Max. digging height 2610mm
Max. dumping height 1850mm
Max. digging radius on ground 2850mm
Min. rotation radius 1330mm
Max. upgrade height of bulldozer blade 345mm
Max. digging depth of bulldozer blade 255mm



Quick Detail:
1. Powerful Engine, KOOP diesel engine/Euro V engine/EPA certified gasoline /Kubota engine for your choices;


2. Adopt the famous hydraulic Shut-off valve;


3. The boom and the bulldozer oil cylinder are equipped with high-strength cast steel protective plates;


4. Dig-to-blade and dozer float features are easy to clean up;


5. Strong lift and dig performance helps you to get the job done faster;


6. Auger, grab, hydraulic hammer, and narrow bucket can be installed;


7. Hydraulic pilot operation is more flexible and convenient.


Applications:
The main uses of the excavator: in road construction projects to excavate trenches, in construction projects to excavate the foundation, in water conservancy projects to excavate ditches, canals, and dredging rivers, in quarries, open-pit mining, and other projects for the stripping and excavation of ore, etc.; in addition to gravel, coal and other loose materials can be loaded.


Operation: After replacing the working device, it can also be used for lifting, pouring, installation, piling, ramming, and pile pulling.
Euro V Engine Powered 1.5 T Mini Digger Small Excavation Equipment 1
Euro V Engine Powered 1.5 T Mini Digger Small Excavation Equipment 2
Euro V Engine Powered 1.5 T Mini Digger Small Excavation Equipment 3


FAQ
Q1: Are you an original manufacturer?
We are a professional manufacturer, we have our own R&D team and sales team, and we provide a one-stop service.

Q2: What about the warranty time?
1 year or 2000 hours. We shoulder all costs during the warranty period, including the freight. And we also provide after-sales service support and agricultural technical support

Q3: What engine you can offer?
Optional Yanmar, Kubota, Brrigs&Sttraton engine,
Optional US EPA & Euro stage V engine

Q4: How can we ensure quality?
We have a quality control system and also double check supervise team,
The final inspection is always carried out before the shipment

Q5: What is your production time or delivery time?
Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 30-45 days, It depends on the order quantity.

Q6: What is your payment term?
Normally we can work on T/T and support 30% payment in advance and the other balance 70% can be paid against COPY B/L.

Q7: Do you support Customized service?
Yes, offer me the necessary information, we provide custom-made service to meet the different needs of global clients with different budgets.

Q8:Do you offer the accessories?
Yes, we have many kinds of accessories for your choice and make the mini excavator in wide usage and more effective.

Q9:How do you pack the machine if buy one unit?
Usually, we pack the whole machine with a strong wooden crate.

Q10:What is your MOQ?
We support the small orders and our MOQ is 1 unit
Secondly, during the guarantee period, we will send new lights with new orders for small quantities. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to the real situation.
