Product Details
Place of Origin: Shandong, China
Brand Name: None
Certification: CE/ISO9001: 2000/EPA/Euro 5/SGS
Model Number: FWML525
Payment & Shipping Terms
Packaging Details: Nude / Wooden Box
Delivery Time: 3-15 week days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P, Paypal
Supply Ability: 5000 Units/Year
Customized: |
Support OEM And ODM |
Transmission: |
Hydraulic Transmission |
Type: |
Crawler Excavator |
After-sales Service: |
Spare Parts |
Warranty: |
12 Months |
Drive Type: |
Electric Drive |
Bucket Capacity: |
0.1-0.5m³ |
Transport Package: |
Nude / Wooden Box |
Color: |
Blue, Yellow, Red, Orange, Green, White |
Working Hour: |
2000h |
Customized: |
Support OEM And ODM |
Transmission: |
Hydraulic Transmission |
Type: |
Crawler Excavator |
After-sales Service: |
Spare Parts |
Warranty: |
12 Months |
Drive Type: |
Electric Drive |
Bucket Capacity: |
0.1-0.5m³ |
Transport Package: |
Nude / Wooden Box |
Color: |
Blue, Yellow, Red, Orange, Green, White |
Working Hour: |
2000h |

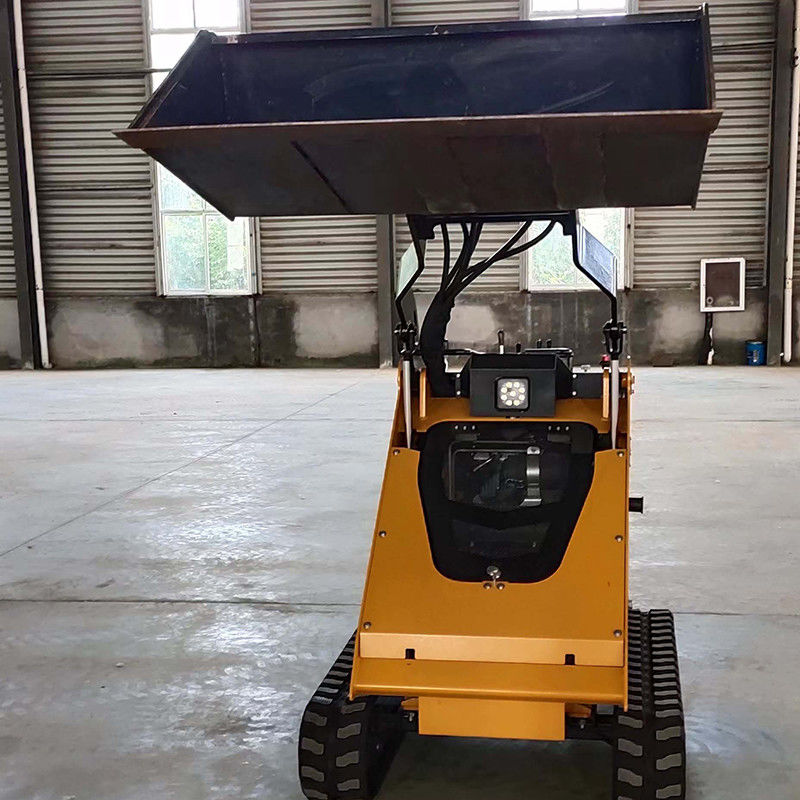

Small Skid Steer Front End Loader With Bucket Mini Skid Steer Loader
which has a unique advantage of this below point:
1. Imported famous brand Japan engine and hydraulic system with 1-year global warranty.
2. Self-produced working equipment, upper carriage and undercarriage , heat treatment with high rigidity
3. Smooth working performance with high work efficiency.
4. Competitive market price with high reliability and best after-sale customer service.
5. Real warranty supplied by the original manufacturer for a whole year.
6. More than 10 years experiences of manufacturing time and exporting time.
Specifications:
| DIMENSIONS | |
| Angle of Departure | 19° |
| Carry Position | 206 mm |
| Dump Angle @ Maximum Height | 36° |
| Dump Height with Standard Bucket | 1272 mm |
| Dump Reach @ Maximum Height | 815 mm |
| Ground Clearance | 159 mm |
| Ground Clearance-under platform | 180 mm |
| Height to Bucket Hinge Pin | 1883 mm |
| Height | 1352 mm |
| Length without Attachment | 1976 mm |
| Length with Standard Bucket | 2637 mm |
| Operating Height | 2649 mm |
| Rollback @ carry | 22° |
| Rollback Fully | Raised |
| Maximum | 94° |
| Ground Contact Length | 918 mm |
| Turning Radius with Standard Bucket | 1593 mm |
| Width | 1104 mm |
| Wheel Tread (over | 904 mm |
| Width with 36" Bucket | 1250 mm |
| Operating Capacity (35%) | 291 kg |
| Operating Capacity (50%) | 416 kg |
| Tipping Capacity | 832 kg |
| Weight (no attachment) | 1069 kg |
| Travel Speed | 5.6 km/h |
| Make/Model | Kubota // D1105-EF02 |
| Fuel/Cooling | Diesel/Liquid |
| Horsepower (SAE Gross) | 18.2kW |
| Maximum Governed RPM | 3000 RPM |
| Torque @ 2200 RPM (SAE Net) | 71.5 Nm |
| Number of Cylinders | 3 |
| Displacement | 1.1L |
| Bore/Stroke | 78mm/78.4 mm |
| Fuel Consumption | 6.1 L/h |
| Lubrication | Gear Pump Pressure |
| Crankcase Ventilation | Closed |
| Air Cleaner | Dry replaceable cartridge with safety element |
| Ignition | Diesel-Compression |
| Engine Coolant | Propylene glycol/water mix (53%-47%) with freeze protection to -37°C Starting Aid |
| Starting Aid | Glow plugs |
| Alternator | Belt Driven; 40 amps; Open |
| Battery | 12 V；45Ah |
| Starter | 12 volt；Gear Reduction Type；1.4 kW |
| Pump Type | Engine-driven, Two Gear type |
Applications:
The main uses of the excavator: in road construction projects to excavate trenches, in construction projects to excavate the foundation, in water conservancy projects to excavate ditches, canals, and dredging rivers, in quarries, open-pit mining and other projects for the stripping and excavation of ore, etc.; in addition to gravel, coal and other loose materials can be loaded.
Operation: After replacing the working device, it can also be used for lifting, pouring, installation, piling, ramming and pile pulling.
Our Service:
We support OEM/ODM service, and we have a professional development research department, designs, colors, and also products all can be acceptably customized, we have 3 times to supervise quality control through the production line before sending out. And quality and service is the first principle of the company. We keep 12 months warranty, beyond the warranty period, and all spare parts are offered to you at our cost price (not including freight). By the way, we support 24Hour customer service by email or phone. Please feel free to contact us, we are willing to become your friend and business partner.
FAQ
Q1: Are you an original manufacturer?
We are a professional manufacturer, we have our own R&D team and sales team, and we provide a one-stop service.
Q2: What about the warranty time?
1 year or 2000 hours. We shoulder all costs during the warranty period, including the freight. And we also provide after-sales service support and agricultural technical support
Q3: What engine you can offer?
Optional Yanmar, Kubota, Brrigs&Sttraton engine,
Optional US EPA & Euro stage V engine
Q4: How can we ensure quality?
We have a quality control system and also double check supervise team,
The final inspection is always carried out before the shipment
Q5: What is your production time or delivery time?
Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 30-45 days, It depends on the order quantity.
Q6: What is your payment term?
Normally we can work on T/T and support 30% payment in advance and the other balance 70% can be paid against COPY B/L.
Q7: Do you support Customized service?
Yes, offer me the necessary information, we provide custom-made services to meet the different needs of global clients with different budgets.
Q8: Do you offer accessories?
Yes, we have many kinds of accessories for your choice and make the mini excavator in wide usage and more effective.
